Reveal Guide.
Please note for the Queen reveal the hardware is located inside back of the headboard.
Queen Reveal installation guide: 2022 Reveal Queen Manual
Reveal King: Reveal King Manual ( Vertical )
This is a different installation than the other Reveal Guides, most of the further details below are catered towards the Queen, but can help with troubleshooting if needed.
For the Queen Reveal Bed there was a minor labeling error for the printed PDF which has been corrected on the online link above.
Step 11 needs 6 * A bolts instead of 6 * G bolts, a small extra package will be sent with 6* A Bolts for the Queen Reveal beds final step for the mattress blockers in step 12.
This final step for the updated 2022 mattress blockers can be done anytime after the bed is installed and already in use – so this will not delay the installation if done after the initial set up.
ATTN: After the pistons are inserted, do not lower the bed frame down without a mattress on top. This could damage the frame. The mattress distributes the weight more evenly.
Please note that the wooden slats and mechanism for the bed are stored inside the headboard, please undo the black mesh fabric and find the slats and mechanism in cardboard boxes when you unpack the boxes and prepare for the installation.
Clear your room as much as possible before assembling
When building the metal frame make sure you pay attention to the bars and which way the holes are facing.
You want all the holes facing up to receive the slats, it is also best to insert the wooden slats into the plastic slat holders and then push down as you do not want to attach the plastic slat holders by themselves to the frame as this makes it harder to insert the wooden slat after.
Remember to install/attach the velcro mesh to the bottom of the bed, this keeps the bed tighter as well as giving protection for your floor.
You need to make sure the metal frame is evenly set. You can adjust this frame so it does not touch either side.
There are 2 places you can adjust how the frame sits. If these bolts are loose, because there is an elongated hole, the metal work can be moved slightly in either direction and you can then tighten them when they are in the right position.
Watch the video for more details. If your bed is not closing properly and touch the side of the bed you can adjust it!

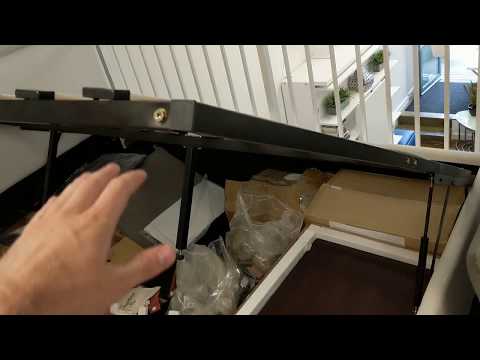

How to attach the pistons: This is one of the last steps, you can do this after your bed frame is assembled. Lift the frame up to a high point and then attach the pistons. Do not try compress the pistons by hand or lower the frame without the mattress on. (Specially on the King beds). The mattress needs to be on the frame to lower the system! Watch the video below:
Simple Manual links: Full manuals are in the shipped cartons
DOUBLE BED LINK: Double
QUEEN BED in Black or White Queen
Updated 2022 Reveal installation guide: 2022 Reveal Queen Manual
QUEEN GREY BED, the manual is slightly different: Grey Queen for 2021 models
KING BED LINK: King
Updated 2022 Reveal King:Reveal King Vertical Installation guide 2022
SINGLE BED: use the other guides as a reference – it is the same build
